Foxwell GT90 Laptop Edition Diagnostic System

Foxwell GT90 Laptop Edition - Diagnostic System for your own PC


Product Code: FXGT90LE

Product rating: Not yet rated

Review this product


Share this product

Price:
only
£ 950.00
was £ 1,295.00
Includes VAT! - FREE delivery!
Availability: In stock In Stock!
Shipped same working day.

£ 950.00
Availability: In Stock! Shipped same working day.

Product details

GT90 Laptop Edition - 3rd Generation Automotive Diagnostics for your own PC

  • Are you looking for a diagnostic system as powerful as Foxwell's top-end GT90 system, but can't stretch your finances quite far enough?
  • Do you want more powerful diagnostics but don't want yet another machine in the workshop?
  • Maybe you just don't like touchscreen tablets, and would prefer to use a machine with a keyboard and a trackpad or mouse?
If any of those sound familiar, this is the system for you.

Foxwell's GT80 and GT90 series tablets have always been based on Microsoft Windows-based tablets. This means they have a very familiar interface for 90% of users, and have great compatibility with printers, and even other diagnostic software packages.
But if they're based on a platform as widespread as Windows, why buy another tablet for your diagnostics when you already have a perfectly good Windows 10 / 11 laptop of your own?
Foxwell had the same thought, and have created the GT90 Laptop Edition (or GT90 LE for short).

So what do you get?

The GT90 LE includes all of the equipment you get with a full GT90, except the tablet and mains charger.
You get:
  • GT90 Bluetooth VCI
  • OBD cable
  • 16-pin EOBD/OBD-II Connector
  • 13 adaptors for earlier vehicles
  • USB cable
  • User manual (supplied as a PDF document)
  • GT90 software installer on a USB flash drive

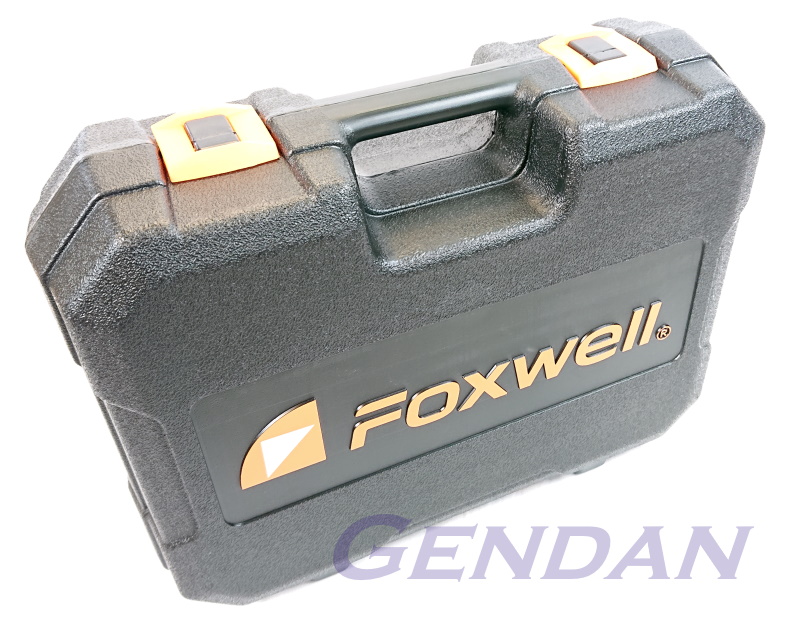

  • Tough carry case

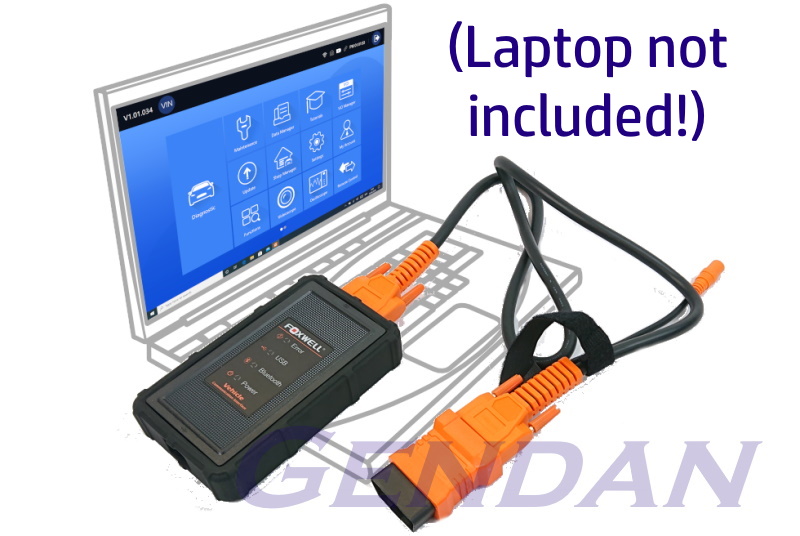

A suitable tablet or laptop is obviously not included.

...and what do you need?

The GT90 LE requires an up-to-date Windows 10 PC. It can be a laptop, tablet, or even a desktop, so long as you can use it within Bluetooth range of the car.
System Requirements:
  • PC running Microsoft Windows 10 or 11 (32 or 64-bit)
  • 4GB RAM (8GB or more recommended)
  • 20GB free hard disk space
  • Bluetooth enabled
    ** Important note ** - Your Bluetooth adaptor must support Bluetooth 4.0 or higher. If you are unsure which version your adaptor supports, there is a guide to finding out on this page.
  • Broadband internet connection to download vehicle software & updates
    (Once installed it can be used on vehicles without requiring an internet connection for diagnostics).

What about the tool then?

Once configured, you essentially have all the features and coverage of the GT90, just using your own PC.
The GT90 LE provides professional diagnosis on over 70 American, Asian and European vehicle makes.

You can focus on what's important — servicing the vehicle. The GT90 comes with menu-driven navigation and one-click update, so you won't have to waste your time learning how to use the diagnostic tool.
Vehicle information is presented in a user-friendly way so you can quickly navigate through to find what you need to get the vehicle fixed. The GT90 provides simple ways to get to wherever you want to go from wherever you are.

This essential piece of garage equipment offers access to a vast range of controllers (ABS, airbags, instrument cluster, etc.), live sensor data, and system/component-level bi-directional controls to get the job done faster and with a greater degree of accuracy.
In addition, it has access to the most commonly required service features like Electronic Parking Brake (EPB) deactivation, service resets, injector coding and transmission adaptations.

Vehicle Coverage

USA Coverage
ODB-II, Chrysler (USA only), Ford USA, GM USA.
ASIA Pacific Coverage
Acura, Brilliance, BYD, Changan, Changheauto, Chery, Chery NE, Daewoo, Daihatsu, Emgrand, Englon, Foton, Geely, Gleagle, Great Wall, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, JAC, Karry, Kia, Lexus, Lifan, Maple, Mazda, Mitsubishi, Nissan, Perodua, Proton, Rely, Riich, Scion, Ssangyong, Subaru, Suzuki, Toyota
European Coverage
EOBD, Abarth, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroen, Dacia, Ferrari, FIAT, EU Ford, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, Mercedes Benz, Mini, Opel, Peugeot, Porsche, Renault, Rolls Royce, Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, Volvo, VW, VW CV
Foxwell GT90 LE - Main Menu

Foxwell GT90 LE - Example manufacturer listing screen

What can the GT90 do?

  • Compatible with the latest 2018/2019 models
  • Get access to powertrain, chassis and body systems
  • Quick Test function to test most vehicle systems
  • Read and clear diagnostic trouble codes and resets MIL
  • View live vehicle sensors data in a text, graph and gauge format
  • Merge interactive live sensor graphs for easy and intuitive diagnosis
  • Live data self learning and alarm when live data over range
  • Record and playback your data logs for offline analysis
  • Read and clear freeze frame data
  • Run component/system bi-directional tests
  • Support adaptations and control module coding
  • Key coding for some makes
  • Support the most commonly required service features like EPB servicing, oil & inspection service resets, and transmission adaptations
  • Multi-language menus and code definitions for an international marketplace

Check available controllers automatically

The GT90 automatically checks and recognizes all available electronic control units on a vehicle in a matter of seconds.
It quickly displays a summary of all the errors detected on the vehicle, and allows errors to be viewed and cleared with just a single click.

Foxwell GT90 - DTC auto-scan

Find problems more accurately

The GT90 shows live vehicle sensors data in text, graph and gauge format and allows you to focus on any suspicious or symptom-specific data parameters. Its powerful graphing capability gives you the "real picture" of what's going on in the vehicle.
You can view up to 4 parameter graphs simultaneously and easily home in on a particular string of data. You can also merge multiple PID plots into a single graph, so you can easily see how they affect each other, providing you with the most comprehensive and functional look at live data possible.

Foxwell GT90 - Live sensor data

Learn vehicle parameters

With the unique data parameter self-learning technology from Foxwell, GT90 provides unrivalled accurate diagnosis.
It gives you the ability to learn good live sensor data values during idle, Key On Engine Off (KOEO), acceleration, deceleration, part load and heavy load on each vehicle comes into your shop and records them for future reference. If that vehicle comes in with a problem, you can easily compare the faulty sensor and parameter readings to the good readings. Through sensor data learning and comparing, diagnostics can be done more quickly, accurately and efficiently, saving both time and money.

Foxwell GT90 - Learn live sensor values

It is important to record data for long periods of time to capture intermittent problems not just seconds or several minutes. With the GT90, you can record for hours to make sure you capture the intermittent fault whenever it happens. Each recording will show when it was recorded, what vehicle and what controller it was recorded from, what parameters were recorded.
Playing back a recording is just like using the scan tool on a live vehicle. Playback speed and direction (forward or reverse) can also be controlled.

Actuations, Adaptations and Control Module Coding

The GT90 cannot only read your codes, but it can also actuate components, run system tests and program control modules.
Reading the trouble codes from your vehicle is easy, but without live data, bi-directional controls and other special functions, you may not have enough information to get the problem fixed right. The GT90 allows you to temporarily activate or control a vehicle system or component.
With the GT90, checking of electronic components such as switches, sensors, relays, & actuators becomes a simple task, saving you time and labour costs.
Provided that a module can be re-coded, GT90 allows for the coding and programming of a replacement control module or changing previously stored incorrect coding, as expensive factory tools do. In addition, it lets you recode the immobiliser transponder in a mechanical key or key fob (you may need the security codes for your car to do this - the GT90 does not retrieve those codes from the car).
With these dealer tool level functions, the GT90 is an invaluable tool that allows you to perform complicated repairs faster and easier, boosting your bottom line and customer satisfaction.

Foxwell GT90 - Component and system actuation

Identify vehicles by VIN

A lot of modern cars now offer their chassis number (VIN) electronically through the diagnostic system. The GT90 can use this information to rapidly and accurately identify the vehicle you are testing. With the diagnostic tool connected to the vehicle's OBD socket, it automatically retrieves the VIN code or you can enter it manually to identify the model you are working on.
(Please note, it is not a legal requirement for cars sold in Europe to offer their VIN electronically, so this function will not be available on some vehicles).
Foxwell GT90 - Vehicle VIN detection

Video Demonstration of GT90 in use:


Software Updates

The Foxwell GT90 now comes with three years of free software updates from the date of purchase - the most generous free update period in the industry.
At the end of the 3 years the unit will not "time-out" - it will continue to function with the currently installed software - you will just lose access to further software updates until you purchase a software update pack.

Package Contents

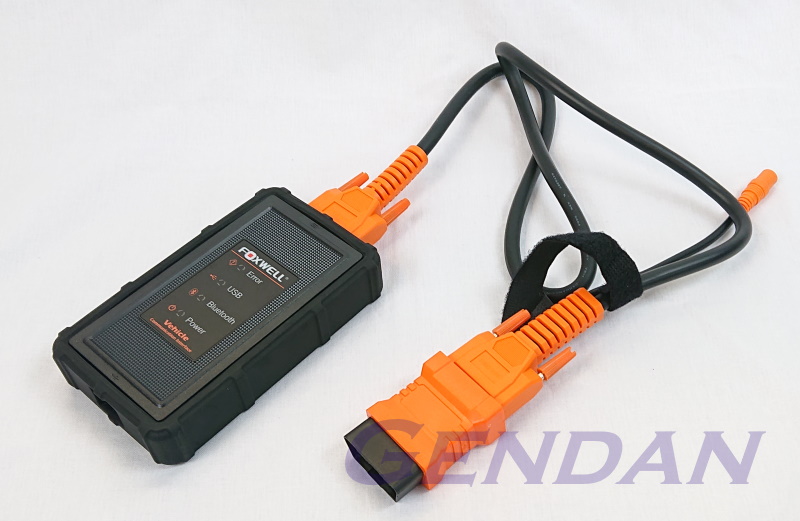

VCI Connector
VCI Connector

USB cable for VCI
USB cable for VCI

Diagnostic cable for VCI
Diagnostic cable for VCI

Cigarette lighter adaptor
Cigarette lighter adaptor

Crocodile clip power adaptor
Crocodile clip power adaptor

16-pin EOBD / OBD-II adaptor
16-pin EOBD / OBD-II adaptor

VAG 2x2 adaptor
VAG 2x2 adaptor

Mercedes 38-pin adaptor
Mercedes 38-pin adaptor

BMW 20-pin adaptor
BMW 20-pin adaptor

FIAT 3-pin adaptor
FIAT 3-pin adaptor

Peugeot Citroen 2-pin adaptor
Peugeot Citroen 2-pin adaptor

GM/Daewoo 12-pin adaptor
GM/Daewoo 12-pin adaptor

Honda 3-pin adaptor
Honda 3-pin adaptor

Kia 20-pin adaptor
Kia 20-pin adaptor

Mazda 17-pin adaptor
Mazda 17-pin adaptor

Mitsubishi 12+16-pin adaptor
Mitsubishi 12+16-pin adaptor

Nissan 14-pin adaptor
Nissan 14-pin adaptor

Toyota 17-pin adaptor
Toyota 17-pin adaptor

Toyota 22-pin adaptor
Toyota 22-pin adaptor

User manual
User manual

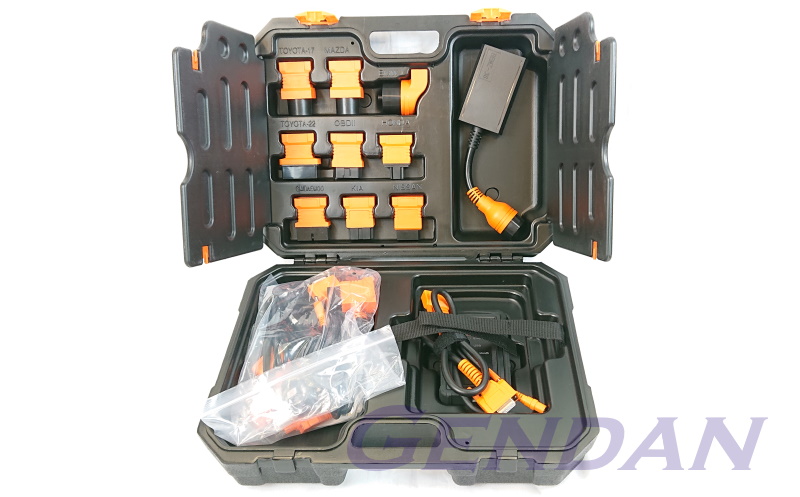

Complete contents:
Complete contents


Software updates

The Foxwell GT90 diagnostic system comes with free software updates for 3 years from the date of purchase.

At the end of the update period the tool will not "time out" - you will be able to continue using the tool with the currently installed software. All you lose is access to download new software updates.

Should you wish to continue updating your tool beyond the free update period, you can purchase a software update pack to extend your tool's update period by a further 1, 2 or 3 years.
