Foxwell BT705 Battery Analyser & Bluetooth Printer

Foxwell BT705 Advanced 12 / 24 Volt Automotive Battery Analyser with wireless Bluetooth Printer

Product Code: FXBT705P

Product rating:
(1 review)

Review this product

Share this product

Price: only £ 190.00

Includes VAT! - FREE delivery!

Availability: Awaiting stock Discontinued
Product is no longer available

Product details

The Foxwell BT705 is an advanced, but still simple to use car battery analyser, which gives a comprehensive assessment of the health and charge level of your 12 or 24 Volt car battery.

The tool will immediately give a voltage reading on connection to the battery.
Then by simply answering a few on-screen questions (such as whether the battery is in the vehicle, the type of battery, the battery standard and the rated CCA), it will give a more comprehensive assessment of the battery at idle.
You can then choose to proceed with additional tests while starting the engine and running the engine with high electrical load (heaters and high-beams on) to evaluate the high-load and charging characteristics of the battery.

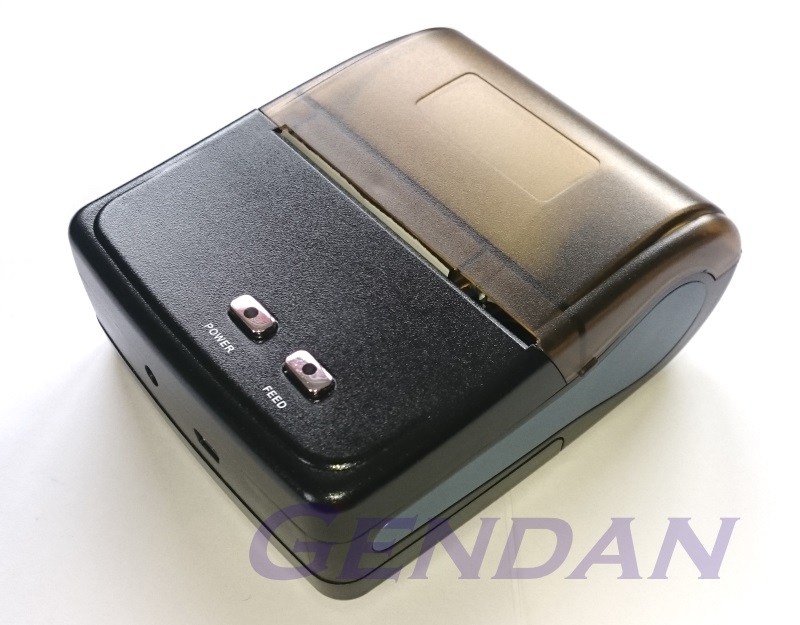

The product you are currently viewing also includes a wireless rechargeable Bluetooth printer, allowing you to print a battery health report direct from the tool, even in the field - ideal to offer to customers if using the BT705 commercially.


The BT750 will report:
  • Measured voltage
  • Measured CCA (Cold Cranking Amps)
  • Rated CCA (manually entered - it does read this from the battery)
  • Cranking voltage (voltage when starting engine)
  • Cranking time
  • Charging voltage (no load)
  • Charging voltage (loaded)

Report Printing

The BT750 can print directly to the bluetooth printer supplied in this bundle, reporting the following (if these tests have been performed on the car):
  • General battery status
  • Voltage
  • Measured CCA
  • Rated CCA
  • Cranking status
  • Cranking voltage (voltage when starting engine)
  • Cranking time
  • Charging status
  • Charging voltage (no load)
  • Charging voltage (loaded)

Package Contents

  • BT705 12/24 Volt Battery Analyser
  • BT705 User Guide
  • Tough plastic carry case

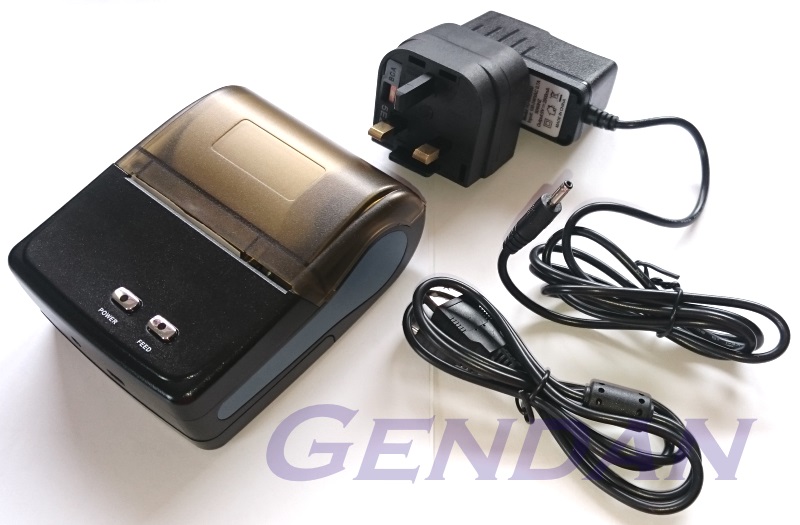

  • Bluetooth Report Printer
  • Printer mains charger
  • Printer USB cable

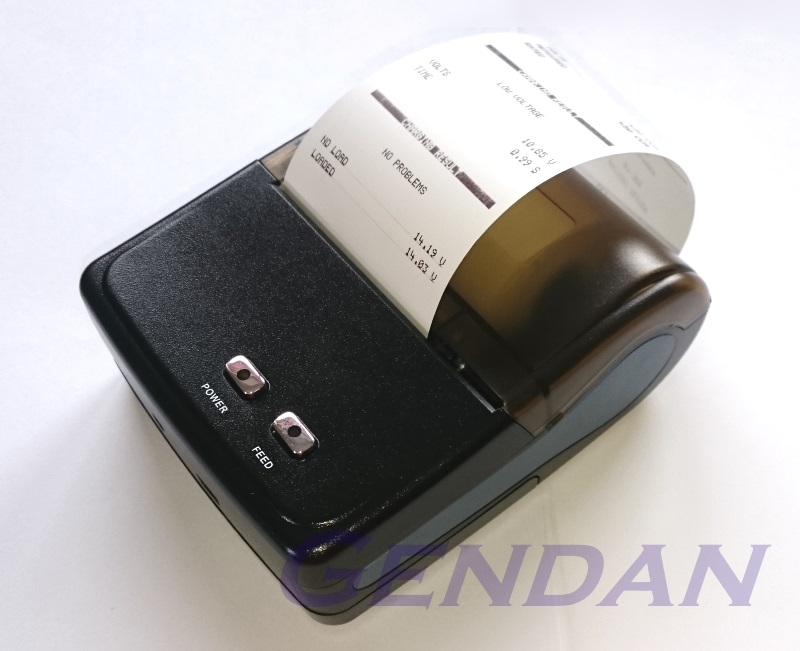

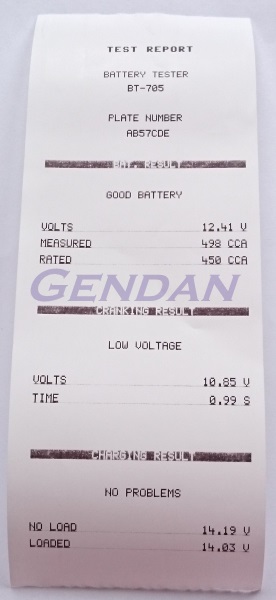

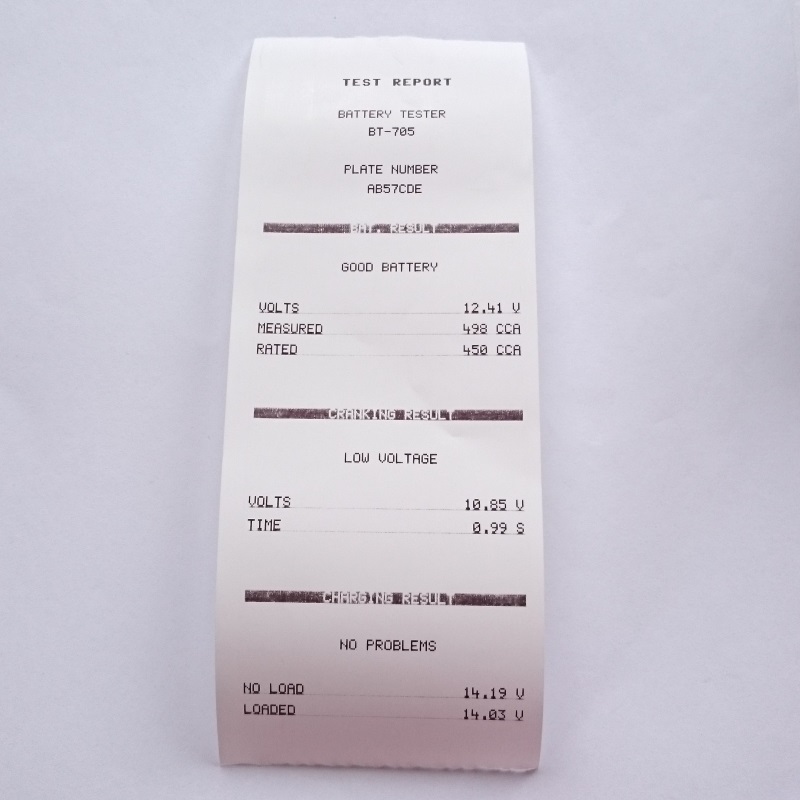

Foxwell BT705 Bluetooth Printer Report print-out


  • Tests 12V batteries rated from 100 to 2000 CCA
  • Supports multiple battery types - regular flooded, AGM flat plate, AGM spiral and gel
  • Supports CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE and GB battery rating systems
  • Can test the battery in-situ without needing to remove from the car
  • Detects bad cells
  • Quick and accurate results in just 3 seconds!
  • Advanced starter / alternator test
  • Quick starter analysis without disabling the ignition
  • Safe to use - does not create sparks or discharge battery
  • Automatic temperature compensation
  • Easy menu driven operation with clear back-lit display
  • Multilingual options (English, French, German, Italian, Russian, Spanish & more)
  • Supplied with wireless Bluetooth printer

Product reviews

If you've already purchased this product, you can submit a review here.

1 customer has reviewed this product so far, with an average score of 5/5
Sort order:

  Displaying reviews 1 to 1 of 1

Review submitted on 27/10/2016 by Karl Tear
have these in a couple of our roadside vans, easy to use and very robust
great tool for in the workshop or on the road
